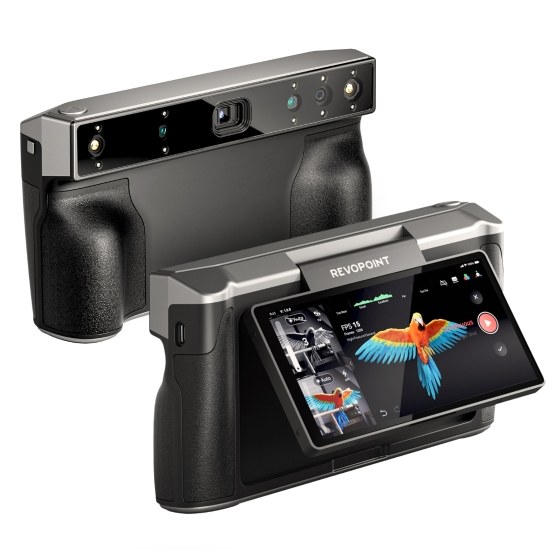

Revopoint MIRACO 3D Scanner for 3D Printing Wireless Handheld 3D Model Scanning 15 fps Scan Speed Up to 0.02 mm Precision Full Color RGB Camera

Revopoint MIRACO 3D Scanner for 3D Printing Wireless Handheld 3D Model Scanning 15 fps Scan Speed Up to 0.02 mm Precision Full Color RGB Camera

for Small to Large Objects Fast Recharging Battery 16GB RAM

Be the first to review this item | Brand: revopoint (0)

Share:

Ship From:

  • China Warehouse

Dispatch:Usually will be shipped inbusiness dayshours

Shipping: Loading...
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

Anguilla
: china

plug_type:

  • au
  • eu
  • uk
  • us

QTY:

Wholesale Inquiry

Special discount has ended

Please note each user for only 1 item(s)

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn more >

Features:
🔝 All-in-one Scanning: 3D scan and edit your models all on one portable 3D scanner, no cables or PC are needed. Transfer your 3D models to a macOS or Windows PC in STL, PLY, or OBJ over MIRACO's lightning-fast Wi-Fi 6 or Type USB-C connections.
🔝 Stunning Accuracy and Color: Create richly detailed with photorealistic textures 3D models ready for 3D modeling with MIRACO's single-frame accuracy of up to 0.05 mm and powerful 48-megapixel RGB Camera.
🔝 Go Small, Go Big: Capture small to large objects without swapping 3D scanners using MIRACO's innovative quad-Depth Camera system. Use Near-mode to capture fine details, then switch mid-scan to Far-mode to capture large surface areas quickly.
🔝 On-the-go Scanning: Scan objects on location easily thanks to MIRACO's lightweight design (750 g) and powerful battery, providing up to 2 hours of scanning time. Maximize productivity with 50W fast charging that'll recharge MIRACO to 80% in only 35 minutes and screen mirroring, making it a breeze to check or present 3D models.
🔝 High-Resolution Display: See your scans with crystal clarity on MIRACO's 2k 6" AMOLED touchscreen. Adjust the screen angle up to 180°, enabling easy viewing from any angle. The screen can even be flipped up for selfie scans.
🔝 Powerful Hardware: Scan and edit everything on MIRACO using its powerful 8-core 2.4GHz processor, 16 GB RAM for up to 5,000 captured frames, and 256 GB hard drive to store all your projects.
🔝 2 Capture Modes: Single-shot mode makes it a snap to capture feature-rich or featureless objects with precise tracking, high accuracy, and minimal point cloud overlap. Create 3D models fast using Continuous mode's fast up to 15 fps scanning speeds.


Specifications:

Product Name: Revopoint MIRACO

Technology: Quad-camera Infrared Structured Light

Single-frame Accuracy: up to 0.05 mm

Fused Point Distance: 0.05 mm

Single Capture Area at Nearest Distance: 28x53mm at 100mm

Single Capture Area at Furthest Distance: 975x 775 mm at 1000 mm

Two Capture Modes: Single- shot Mode,Continuous Capture Mode

Continuous Capture Mode: 15 fps

Minimum Scan Volume: 10x10x 10 mm

Maxmium Scan Volume: 4000 x 4000 x 4000 mm

Working Distance: 100 - 1000 mm

Screen: 6" 2k AMOLED Touchscreen

Auxiliary Lighting: Infrared Fill Lights, Flash LEDs

3D Light Source: Class 1 Infrared Light

Storage: 256 GB eMMC

Position Sensors: 9-axis IMU

Memory (RAM): 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro)

RGB Camera Resolution: up to 48 Megapixels

Scanner Weight: 750 g

Dimensions (L x W x H): 200 x 50 x 110 mm

Battery Capacity: Internal lithium Battery 5,000mAh, supporting up to 2-hour continuous scanning

CPU: 8-core CPU, 2.4 GHz

Tracking Methods: Feature , Marker

Protection Rating: IP45

Connector Type: USB Type-C

Wi-Fi Type: Wi-Fi 6

Compatible Systems: Windows 10/11, macOs

Operating system: Native Android System

Special object Scanning: Use scanning spray for transparent, dark, or highly reflective objects.

Scanning Environment: Indoors and Outdoors

Output Formats: PLY, OBJ, and STL

3D Printing Compatible: Yes

Built in Chip Computing: Depth Map Computing, 3D Scanning, Point Cloud Processing and Editing

PC Requirements: No PC required


Package List:

1 x MIRACO 3D Scanner

1 x Tripod

1 x Mini Turntable & Sample Bust

1 x Turntable Topper & Turntable Power Cable

1 x Scanner Bag

1 x Near- mode Calibration Board

2 x Mat

1 x Wrist Strap

1 x Dual USB Type-C Port Power Adapter

1 x USB Type-C to C Cable (1.8 m)

1 x Cleaning Cloth & Markers
