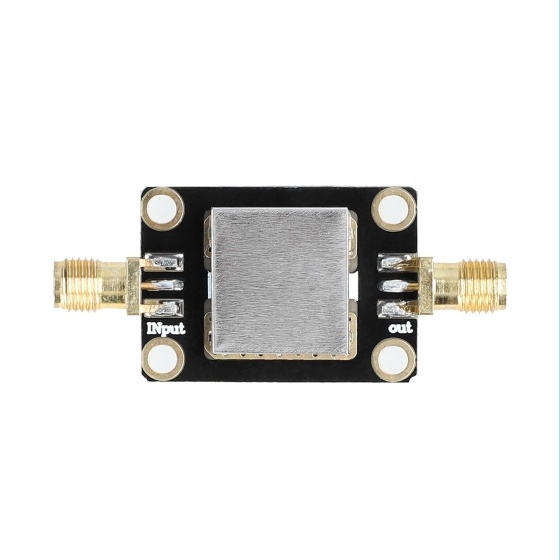

300-1200MHz RF Signal Detection Module -30dBm to 40dBm High Sensitivity Microwave Diode Signal Detector ( Item#: E20903 )

This product adopts quality microwave diode design and has wide frequency ranges of discharge signal detection (not less than 3200MHz). -30dBm to 40dBm high sensitivity design, preferred for radio production. Uses a double-voltage detector (consisting of two backward microwave diodes), the sensitivity is 6dB higher than single-detector. It can be used for various high frequency and RF signal detection, such as: AM detection, 10.7MHz detection AM, frequency modulation discriminator output detection, 300-1200MHz discharge signal and partial discharge signal detection and etc..

Features:
This product uses a double-voltage detector (consisting of two backward microwave diodes), the sensitivity is 6dB higher than single-detector.
This detector adopts quality microwave diode design and has wide frequency ranges of discharge signal detection (not less than 3200MHz).
-30dBm to 40dBm high sensitivity design, preferred for radio production.
Quick pulse detection corresponding speed: PS-level.
TR component power detection.
The improvement and replacement of 2AP9 and 1N60.

It can be used for various high frequency and RF signal detection, including but not limited to:
AM amplitude modulation signal detection.
10.7MHz amplitude modulation signal detection.
Frequency modulation discriminator output detection.
300-1200MHz discharge signal and partial discharge signal detection.
Pulse signal detection, such as wifi signal transmission and reception switching, signal detection circuit switching in 2.4G WIFI amplifier.
Equipped with wireless signal energy harvesting function.
Radio production, highly sensitive radio detection circuit in ore machine.
Radio energy-collection in free space.

Note: If you want a lower working frequency, you can increase the output capacitance. If you want fast-response speed, you need to reduce the capacitance. This is contradictory, you can configure it according to your needs.

Specifications:
Name: RF module
Material: printed circuit board
Maximum input: 20dBm (burned power); linear ranges <10dBm
Detection output: default is positive
Working frequency: 0.1-3200MHz
RC filtering: R=10K, C=lnF, (two parallel elements of the output port)
Item size: 58 * 23 * 7mm / 2.28 * 0.91 * 0.28in
Item weight: 5g / 0.18ounce
Package size: 130 * 92 * 10mm / 5.12 * 3.62 * 0.39in
Package weight: 7g / 0.25ounce

Packing List:
1 * RF Module
