This instrument can be used to measure DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Capacitance, Frequency and Duty Ratio, Diode Test, Connectivity Test, Temperature, Luminance, Humidity.
Features:
Manual and automatic range. Convenient exchange makes your measurement more accurate.
Relative value measurement function. In this mode, the instrument display value = actual value-set reference value.
Large LCD screen with backlight can help the user see the data clearly even in the night.
Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.
Specifications:
DC Voltage: 400mA / 0.1mV, 4V / 0.001V, 40V / 0.01V, 400V / 0.1V, 1000V / 1V
AC Voltage: 400mV / 0.1mV, 4V / 0.01V, 40V / 0.01V, 400V / 0.1V, 750V / 1V
DC Current: 400
mA / 0.1
mA, 4000
mA / 1
mA, 40mA / 0.01mA, 400mA / 0.1mA, 4A / 0.001A, 10A / 0.01A
AC Current: 400
mA / 0.1
mA, 4000
mA / 1
mA, 40mA / 0.01mA, 400mA / 0.1mA, 4A / 0.001A, 10A / 0.01A
Resistance: 400Ω / 0.1Ω, 4kΩ / 0.001kΩ, 400kΩ / 0.1kΩ, 4MΩ / 0.01MΩ, 40MΩ / 0.1MΩ
Connectivity: The resistance of the measured circuit is less than 50
W. The buzzer contained in the instrument will sound.
Capacitance: 40nF / 0.01nF, 400nF / 0.1nF, 4
mF / 0.01
mF, 40
mF / 0.01
mF, 100
mF / 0.1
mF
Frequency and Duty: 9.999Hz / 0.001Hz, 99.99Hz / 0.01Hz, 999.9Hz / 1 Hz, 9.999kHz / 1 Hz, 99.99kHz / 10Hz, 199.9kHz / 100Hz, >200kHz, 0.1~99.9% / 0.1%
Noise: 40-100dB / 0.1dB
Luminance: Lux (4000)/1Lux, *10Lux (40000) / 10Lux
Humidity: 20-95% / 0.1%
Temperature: 0~40
℃ / 0.1℃, 32℉~104℉ / 0.1℉
Temperature Measurement Range: -20
℃~1000
℃, -4℉~1832℉
Item Size: 19.5 * 9.5 * 6cm
Item Weight: 370g
(without battery)
Power Supply: 4 * 1.5V AA Battery
(not included)
Package Information:
Package Size: 23 * 15 * 7cm / 9.05 * 5.9 * 2.75in
Package Weight: 661g / 1.46lb
Colorful Gift Box
Package List:

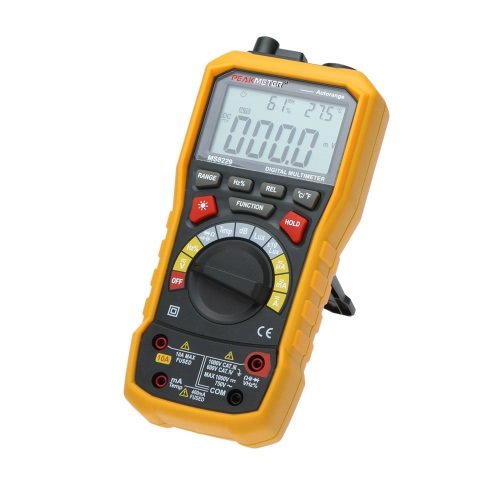

1 * PEAKMETER MS8229 Auto Range Digital Multimeter
1 * Pair Test Leads
1 * English Operating Manual
1 * Temperature Probe
1 * Storage Bag
