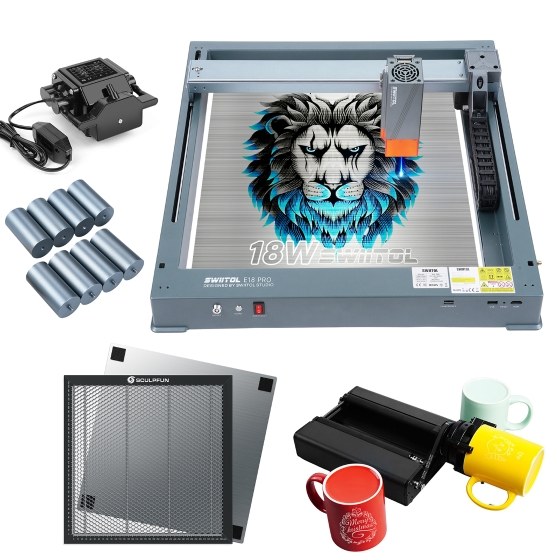

Swiitol E18 Pro 18W Integrated Structure Laser Engraver with 400x400mm Honeycomb Working Table and Air Assit Pump and 4in1 Y-axis Rotary Roller and 8Pcs Height Raised Footpad ( Item#: C-OS0384-6 )

Features:
♦ Integrated Structure Laser Engraver: The overall frame of Swiitol E18 Pro is made of aluminum alloy and can be used out of the box without installation.
♦ Second-generation blue laser packaging process: Swiitol E18Pro laser adopts the second-generation laser spot compression process, which further compresses the laser spot and significantly improves cutting capabilities. Compared with machines of the same level, the cutting capacity is increased by 20%.
♦ Upgraded compressed spot coupling technology: the ultra-fine laser focus area is reduced to 0.08x0.08mm, and the high-density laser can easily cut 15mm thick Pine Wood and 15mm thick black acrylic by multiple cuts.
♦ More stable and high-speed structure: The bottom frame of Swiitol E18 Pro is formed in one piece, and the X-axis metal adopts a double-axis guide rail structure to work with small vibration, ensuring that the machine does not shake when running at a high speed of 36000mm/Min;
♦ Tank chain binding: To make the machine more beautiful and the structure more stable, Swiitol E18 Pro adopts the tank chain wire binding scheme. The wire harness runs smoothly without entanglement and improves the wire life.
♦ Cross positioning: The laser is equipped with a red light cross positioning module as standard, which can position the engraving range faster and more accurately and determine the flatness of the material.
♦ New non-clogging laser: The new laser has a built-in tool-free focusing module and a built-in air assist system, without wire interference, simple and beautiful. There is also a patented double-layer wind collecting cover design, which can ensure long-term use without clogging or contaminating the lens, greatly extending the life of the laser.
♦ Brand new 32-bit motherboard: The most intelligent motherboard, with faster data reception and processing capabilities, optional accessories to enable autofocus and resume carving after power off. Sinking cutting and other functions.
♦ Mobile APP: The APP BURNLAB is now available in major Android application markets and iOS system (you can also scan the QR code of the manual to download). It is small and multi-functional, bringing a new control experience. Come and give it a try.
♦ New filter eye conservation design: The panoramic filter protector protects your eyes very well, filtering 97% of ultraviolet light. You and the people around you do not need to wear goggles to watch laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.
♦ Broad compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL and LightBurn, and supports Win XP/Win 7/Win 8/XP/Win 10. It also supports MAc system (LightBurn) and engraving file formats. Support NC, BMP, JPG, PNG, DXF, etc.
♦ Safety conservation: It is equipped with an emergency stop button. If an unexpected situation occurs, the machine can be stopped at any time. It is also equipped with a reset switch and a limit switch to make engraving safer.
♦ Rich accessories: According to different needs, honeycomb panels, air assists, rollers, claw plates, conveyor belts, air purifiers and other accessories can be purchased (need to be purchased separately)

Necessary Accessories for Laser Cutting:With this accessory to cut wood, acrylic and other materials, the edges of the wood are neat and clean, not easy to be yellowed by smoke, and you can get a clean cutting work. 400x400mm working area is suitable for most popular laser engraving machines, maximize the cutting area.
Observable Design:When the laser cuts through wood or acrylic, the metal plate at the bottom of the honeycomb will emit a bright light, which means that the cutting has penetrated. Easier to judge whether cutting through. You don’t need to calculate the number of cuts, just keep repeating cutting until the bottom glows, which means the material has been cut through.
Safe Metal Desktop conservation Board:All made of metal, processed by high-precision CNC, solid structure not easy to deform, and high flatness. And equipped with a metal desktop conservation board, which can protect the table from laser damage.
Square Measuring Ruler:X-axis and Y-axis contain precise scale lines to form a right-angle measuring ruler, which is convenient for you to measure the size of cutting objects quickly.
Wide Compatibility:Compatible with various mature laser engraving machines, such as diode DIY laser engraving machine and CO2 laser engraving machine.

Perfect Air Pump: 10-30L/min air pump is very suitable for air-assisted laser engraving machine, perfectly suitable for Swiitol Laser Engravers C18 PRO\C24 PRO\E6 PRO\E18 PRO\E24 PRO or other similar air-assisted laser engraving machines.
High Durability: This air pump has been produced and sold in the market for more than 10 years. After long-term testing and verification, it has extremely reliable function and stability.
Adjustable Speed: The air pump has a speed control design, you can adjust the flow rate from 0-30L/Min by rotating the regulator, and adjust the airflow speed according to the needs of the laser engraving machine.
Low Noise and Low Vibration: Upgraded silent design, the internal structure of the machine and the external anti-vibration feet greatly reduce noise or vibration, providing a quiet working environment of less than 40dB.
Stable Air Pressure Output: High stability design, it can maintain a stable air output even if it has been working for a long time.

4in1 Rotary Module: The roller with rubber covered, greater frictional forces than any sheet metal. Water resistance. 90% pre-assembled. Now you can take a few minutes to switch the mounting combination to work with the sculpted item you want. You can even experience four engravings in less than 10 minutes.
Roller Rotary: Now your baseball bat or red wine glass is always ready for engraving, so you don't even need to think about length or diameter. The engraving starts naturally when an extra-long cylindrical object or a large diameter object is placed on it.
Chuck Rotary: Y-axis Rotary Pro lets you customize your engravings in fun new ways. Bring a mug to life by engraving it with your favorite design. Complete with thumbtacks. You can also see your favorite lifestyle items personalized.
Ring Rotary: On the Y-axis Rotary Pro, the smallest diameter allows perfect engraving of rings.
Sphere Rotary: The module with suction cup assembly sliding adjustment to adapt to different diameter of the ball, with the use of the chuck ball fixed diameter 50-105mm.
Applicable to a wide range of models:  Standard two 80CM motor adapter cables are suitable for different types of engraving machine interfaces on the market. It can use with Swiitol Laser Engravers such as C18 PRO\C24 PRO\E6 PRO\E18 PRO\E24 PRO.

♦ Used with Swiitol Mode E6 PRO\E18 PRO\E24 PRO Laser Engraver, it allows you to engrave taller objects by increasing the height of the laser engraver and cutter。
♦ Used for the 4 corners of Laser engraving machine, each set of columns can increase the engraving height by 60mm.
♦ It includes 8 raised foot pads, which can be matched in pairs, and the machine can be raised by 12cm.
♦ Both taller objects and flat materials and cylindrical materials with rotating attachments can be engraved.
♦ Easy to install and non-slip.

Specification:
Model: E18 Pro
Engraving ruler: 365x305mm
Machine Electric power: 130W
Laser Electric power: 90W
Laser output optical power: 15-18W
Laser wave: 455 ±5 nm
Engraving accuracy: 0.02mm
Net weight of equipment:  8.5kg
Max Engraving Speed: 36000mm/Min
Data transmission type: USB connection
Focusing type: fixed focus laser, no focusing
Spot size: 0.08x0.08mm
Operating software: LaserGRBL, LightBurn for with Win XP/Win 7/Win 8/XP/Win 10 system
APP: BURNLAB compatible with iOS and Android
Carving materials: Basswood, pine, paulownia, plywood, yellow peach, mahogany, density board, kraft paper, non-transparent acrylic board, resin, rock board, ceramics, leaves, bamboo, cardboard, plastic, leather, PCB version, alumina, non-reflective Electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting materials: Kraft paper, hardwood, Paulownia, basswood, pine, softwood, bamboo chips less than 3MM, low-density foam board, non-transparent acrylic board, ABS, PP and other boards less than 3MM thick, cardboard, non-woven fabrics, wooden boards, acrylic, some thin plastic board, sponge;
Supported file formats: NC, BMP, JPG, PNG, DXF
Power supply: 100-240V AC, 50/60HZ Output: 12V 5A

Material: High-strength Steel
Product Size: 400x400mm
Product Thickness: 22mm
Diameter of Honeycomb Mesh: 9mm

Product: Air Pump
Compatible Machines: Two Trees Totems/TTS/TS2, A5 pro,S9,S6 Pro, Master2 Pro S2-SF, Reizer 20W,LE40OPRO,L5,LE-1,Reizer 20W,LE40OPRO,L5,LE-1
Voltage (V)土10%: AC110V/220V
Plug: US, EU (Optional)
Frequency (Hz): 60
Current (m A) +15%: 1067
Power(W) +15%: 15
Maximum flow rate (L/min): ≥28
Pressure (kPa): 230
Noise (dB): ≤55

Chuck rotary
Radio: 5.7:1
Diameter:26- 140mm

Engrave diameter range (Use additional risers)
Roller: 5mm-1 50mm
Chuck: 1mm-1 15mm
Sphere: 50mm-105mm
Ring: 15mm-1 10mm
Product Weight: 2090g

For: Swiitol Mode E6 PRO\E18 PRO\E24 PRO
Size: L60 x D30mm
Quantity: 8PCS

Precautions:
●Please read the user manual carefully before operating the laser engraving machine.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed properly, you need to wear goggles.
●Do not touch the laser with your hands, otherwise your hands may be burned.
●Please avoid strong impact on the machine.
●Children under 14 years old are prohibited from using this product. Children over 14 years old require adult supervision.
●The laser cannot be applied directly to any specular reflective object, which may cause injury to the operator or burn the laser.

Packing List:
1 x Laser Engraver
8 x Wire anchor
8 x Cable clamp
1 x WIFI antenna
1 x Fixed focus lens
1 x Flash drive
1 x H3 hexagon L-shaped wrench
2 x M4 thumb screw
1 x Slider
1 x Switch key
1 x One- to-two TYPE C cable
1 x Power cable
1 x Silicone hose (air hose)
1 x Goggles
1 x 100*30 lint-free cloth
4 x (M4*6)
1 x User manual

1 x SCULPFUN honeycomb panel
1 x 400x400mm metal desktop conservation board

1 x Air Pump
4 x M3x8mm Screws
4 x M3x10mm Screws
4 x M3*3 Screws
1 x φ8 Air Tube L70mm
1 x φ6 Air Tube L2500mm
1 x PG 10-8 Connect Tube
1 x 40*40mm Blow Head
1 x SL8-M5 Air Flow Control
1 x Laser Shield
1 x Spanner 2.5mm
1 x Spanner 2.0mm
1 x Spanner 1.5mm

1 x 4in1 Y-axis Rotary Roller

8 x Riser
20 x Screw Nut
1 x Parts Kit
